High Fly

First "live" stream show from 37,000ft attitude and 407 kts speed.)

And a beer of course.

New Electric

Today I visited EVTV Amsterdam.

Anne Kloppenborg from New Electric.

He has his shop full with stuff you need to build your electric dream.

Rebalance

We have seen the red balance putty flying away.

 And we have seen the yellow balance putty flying away...

Let's try the "German Green".

Different View

Because of a different view to this project it is alive again.

Please subscribe this blog.

http://e-grizzly600.blogspot.de/

EVDrive 20/2013 WarP 9 Threaded Bushing

EV Sucks

...just kidding.)

EVDrive 19/2013 Downhill

Swiss Job

In a six hours night shift I was able to fix the front axle.

 ...and made a good test shot four hours later.)

Serious Problem

The good news is: She made it to Switzerland, driving non stop 188 Km,

 and up to 1200 m height NN (3.937 feet NAP).

But in front of the Hotel I had to drive backwards....and then this happened.(

I am still investigating what really happened. Both steering knuckles bent completely.

First the right and than, because of 600m depth in front of me I had to drive backwards again, and killed the left side.

I tormented her into the garage and hope to fix it before the next job...?!

Seating In Carbon Brushes Day 13

The End

46.400.000 revolutions and 312 hours runtime

But this seating was a major exception.

By accident I got the only set of H60 brushes on earth that was not angled right.

Mazel tov

Next H60 seating is running in a WarP11 and looks much much better from the beginning.

Seating In Carbon Brushes Day 10

35 mega revolutions at 242h

Brush Seating Service

WarP 9™ And WarP 11™ Motors In Stock

WarP 9 Series DC Motor

Double ended shaft - advanced timing, 1.125" DE Keyed Shaft* CE Keyed Shaft*, lift-eye bolt hole, thermal switch inkl. a Keyway and a Lift Eye Hook and National T300 or the Hellwig H49 RedTop split brushes. On request with brush seating service.

WarP 11 Series DC Motor

Double ended shaft - advanced timing, 1.125" DE Keyed Shaft* CE Keyed Shaft*, lift-eye bolt hole, thermal switch inkl. a Keyway and a Lift Eye Hook and the Hellwig H60 RedTop split brushes. On request with brush seating service.

As an authorized international Netgain dealer this WarP's are for sale.

Inquiries at: netgain@ccp-film.de

Seating In Carbon Brushes Day 9

32 mega revolutions / 222h

Spring force is at about 24 Nm.

Seating In Carbon Brushes Day 8

H60 brushes 60% seated after 27 mega revolutions.

EVDrive 18/2013 Seating In Carbon Brushes Part II

Seating In Carbon Brushes Day 7

This is the result after 24.400.000 revolutions or seven days runtime.

Helwig Carbon H60 brushes in a WarP 9

EVDrive 17/2013 Seating In Carbon Brushes

H49 Brushes

This are my (used) H49 Brushes from a WarP 9.

About four days runtime on the bench with no load and 1400 Km driving

with max. 420 amps at 142 volts.

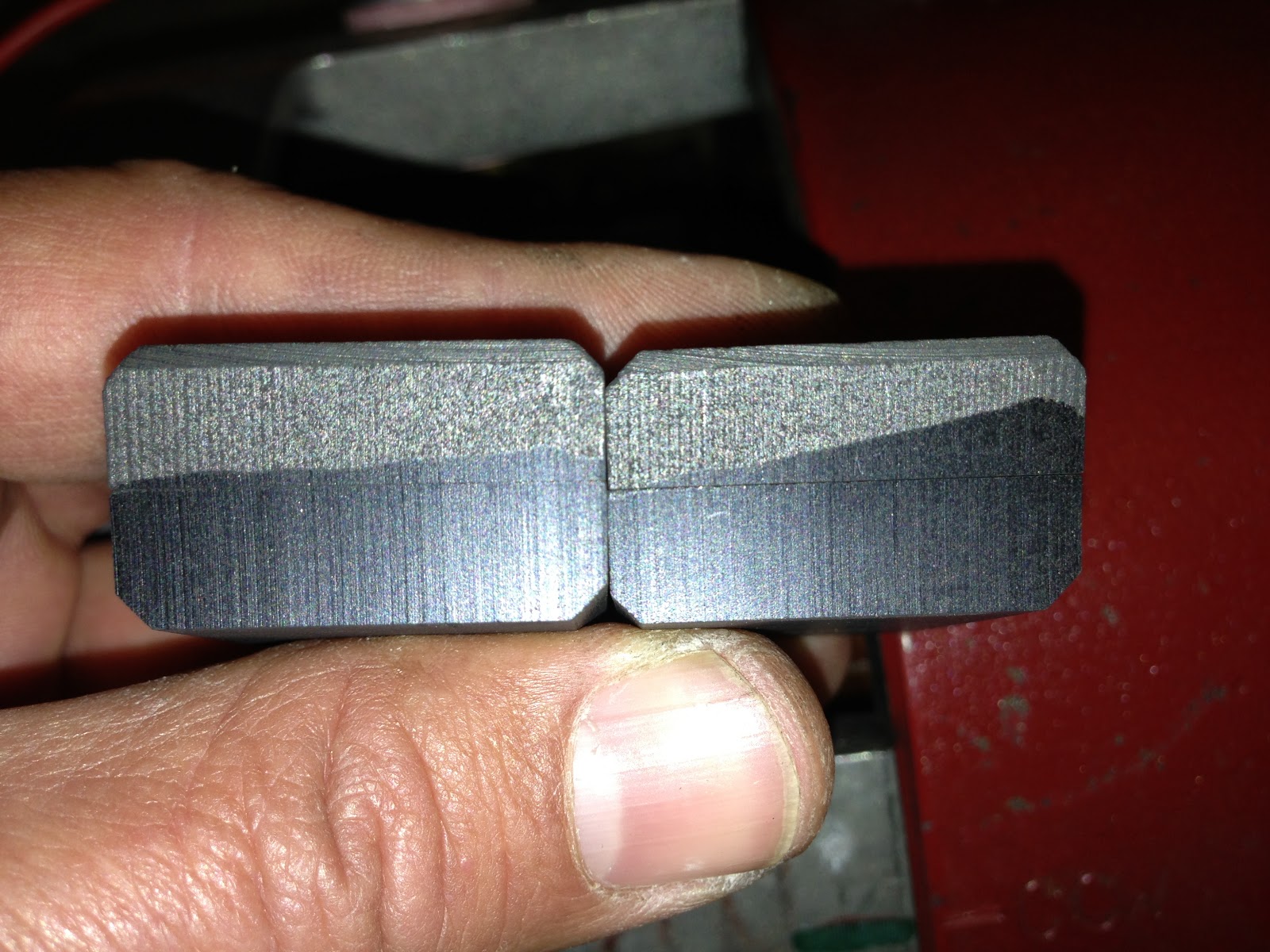

Seating In Carbon Brushes Day 1-5

I am seating in H60 carbon brushes for more than five days now.

Running day and night a WarP 9 at 12V.

They are more or less half done after 125 hours.

After 125 hours runtime.

After 93 hours runtime.

After 73 hours runtime.

After 18 hours runtime.

May The 4th Be With You

Charge Force

 Two more Brusa chargers.

The tower of power.

The software setup takes only one minute.

Shooting Day

We were in Frankfurt am Main.

Shooting the second time a commercial for a german bank.

2.0 Updated to a better link.

Cruise Control

New WarP 9 and 11 motors will be available soon.

EV Grid

My 220VDC/AC 3KVA singel phase inverter arrived today.

First surprise, it is 15kg / 33 lbs lighter than described.

Second surprise, it can switch without interference between AC and DC input back and forth(Bypass transfer time ≤4ms).

That allows me to prepare the film light without draining the battery pack.

eDashboard Design 1.1

I have a JLD404 to show the pack voltage, amps and Ah.

I also have a JLD404 to show my motor voltage, amps and watts. Thats new.

The 5740 is showing one battery and will stay until I have another meter to monitor my 13 volt system.

Now two JLD7100 to show the liquid cooling and battery temperature.

And a second JLD404 to show and monitor my Inverter voltage, amps and watts.

I want to have a EU standard 220 volt / 2400 watt AC system, to run a 1,8 kw HMI lamp and some film stuff.

The inverter is ordered and will hopefully arrive in april.

Freezing For Science

With an outside temperature of 2-3°C(about 36°F), I repeated my test drive of 202km and WestWind.

I have not expected to freeze in the car like that....but everything was going good (aside from my legs. It took two hours to thaw them again.)

 First I was driving 100Km (62miles) mostly freeway at 100Km/h (62miles/h).

I used 1,03 Ah/Km from my 70 Calb 180Ah pack. Thats in increase at about 30% because of the low temperature.

On the second part of the test drive I was driving 90Km (56miles) country road. I decrease the max. speed at 80 Km/h (50miles/h). A lot of 70 Km/h (44miles/h). So I came back to my energy consumption and the range I was used to.

This was only for test reasons. An electric car should drive at normal speed at any weather.

It would be nice to test a heated and isolated pack in winter.

Then we could see the power consumption of the battery pack heating against the performance increase of the battery pack.

eLandcruiser

Right now I'm a little bit more busy on my Land Cruiser blog.

EV-REBBLlion

I was visiting REBBL in the Netherlands today.

They convert young and oldtimer to electric and are the European dealers for Evnetics selling the Soliton controler with EMC.

Nice people with good experience.

WarP 11 ™ Motor In Stock

Just arrived in Hamburg, Germany

WarP 11 Series DC Motor

Double ended shaft - advanced timing, 1.125" DE Keyed Shaft* CE Keyed Shaft*, lift-eye bolt hole, thermal switch ( opens at 150 degrees C) Inkl. a Keyway and a Lift Eye Hook

Optional with Hellwig H60 RedTop Split brush kit.

As an authorized international Netgain dealer this WarP 11 is for sale.

Inquiries at: netgain@ccp-film.de
